TP 175 MOBILE Z.E. T
Infeed
| Roller opening: | 175 x 191 mm |
| Number of rollers: | 2 |
| Roller position: | Horizontal |
Chipper type
| Construction: | Turntable, 1 axle |
| Chipper type: | Disc chipper |
| Chipping angle: | 90º |
| TP OPTICUT: | Yes |
| TP TWIN DISC: | Yes |
| Number of knifes: | 2 |
| Number of cuts per turn: | 2 |
| Woodchip size: | 4-10 mm |
| Rotorspeed: | 1750 r/min |
| Rotordiameter: | 599 mm |
| Rotorweight: | 69 kg |
| Transmission: | DIRECT DRIVEN |
| Counter knife horizontal: | 1 turnable |
| Counter knife vertical: | 1 |
| Replacement of wearing plate: | No |
| Wearing plate: | Yes |
| TP CHIP KIT: | Option |
Spout System
| TP VARIO SPOUT: | Option |
| TP FIXED SPOUT: | Standard |
Stress control
| Stress control: | TP PILOT+ with TP EASY CONTROL |
Engine and working hours
| Engine: | ME 1507 PMAC |
| ECO/STANDARD/BOOST - MODE: | 10 HP (7,6 kW) / 14.5 HP (11 kW) / 19 HP (14 kW) |
| Battery 3 x LiNiMnCoO2 65V 195 AMP: | SUB 750 kg - up tp 3h |
| Battery 4 x LiNiMnCoO2 65V 260 AMP: | SUB 750 kg - up to 4h |
| Battery 5 x LiNiMnCoO2 65V 325 AMP: | 792 kg - up to 5h |

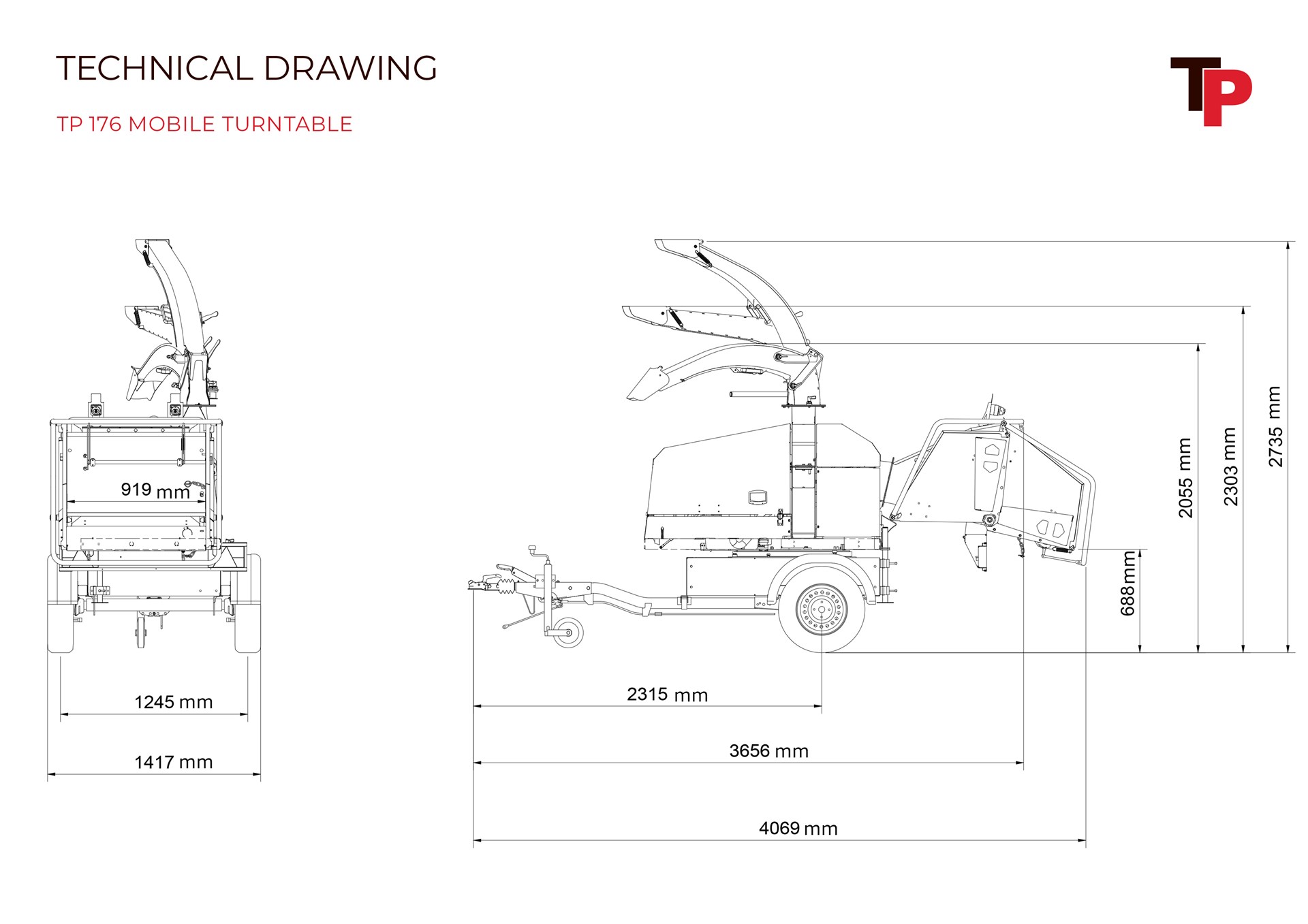

Dimensions
| Length (transport/operation): | 3656 mm/4069 mm |
| Width: | 1417 mm |
| Height (t/o) TP VARIO SPOUT: | 2055 mm/2756 mm |
| Height TP FIXED SPOUT: | 2303 mm |
| Weight: | 821-872 kg |
