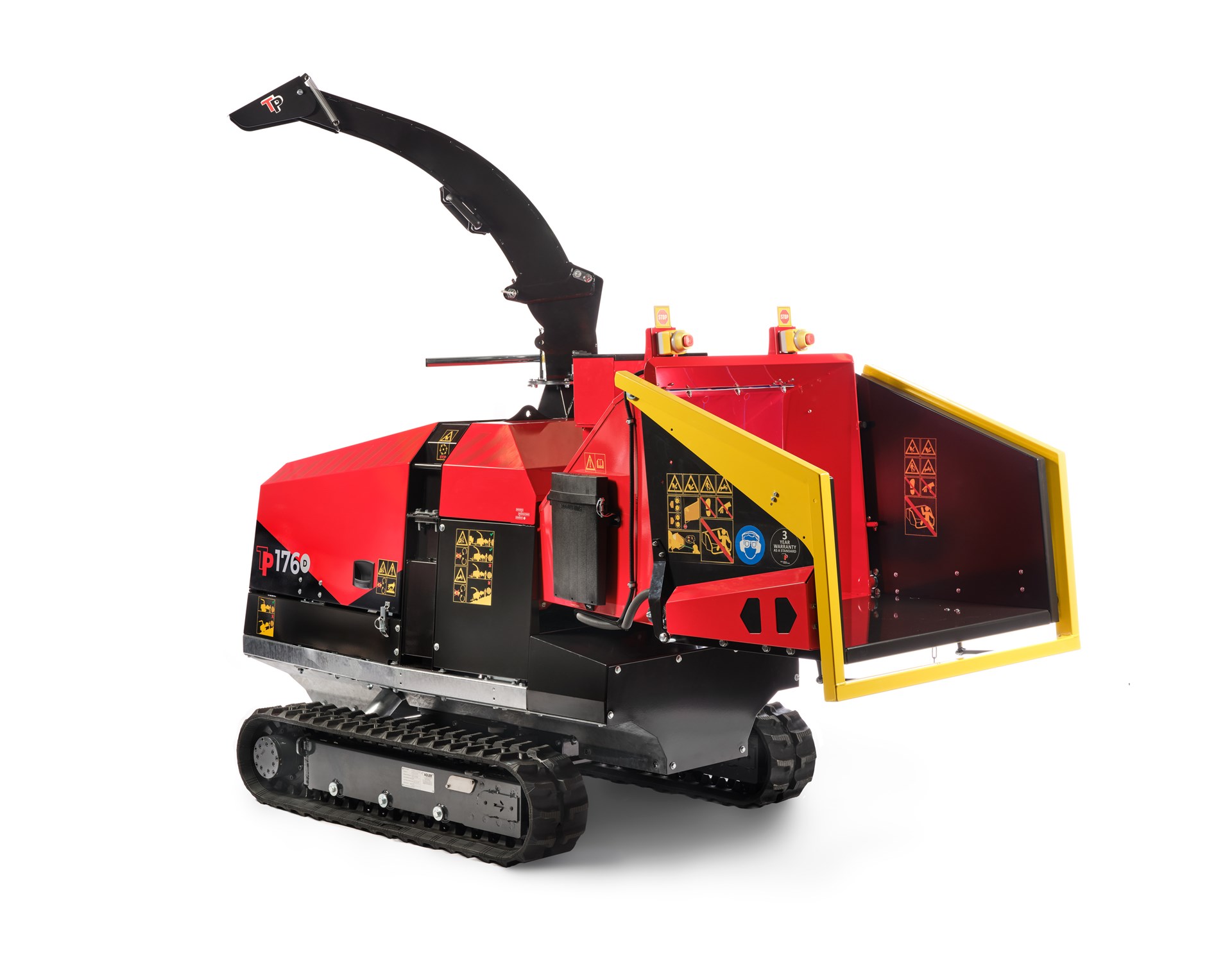

TP 175 TRACK STAGE V


Infeed

Roller opening: 175 x 191 mm
Number of rollers: 2
Roller position: Horizontal

Chipper type

Chipper type: Disc chipper
Chipping angle: 90º
TP OPTICUT: Yes
TP TWIN DISC: Yes
Number of knifes: 2
Number of cuts per turn: 2
Woodchip size: 4-10 mm
Rotorspeed: 1750 r/min
Rotordiameter: 599 mm
Rotorweight: 69 kg
Transmission: TP STARTER
Counter knife horizontal: 1 turnable
Counter knife vertical: 1
Replacement of wearing plate: No
Wearing plate: Yes
TP CHIP KIT: Option

Spout System

TP VARIO SPOUT: Standard
TP FIXED SPOUT: Option

Stress control

Stress control: TP PILOT

Engine

Engine: Kubota D1305-E4B
Fuel: Diesel
Engine power: 25 hp/18,5 kW
Number of cylinders: 3
Fuel consumption: 3l/h

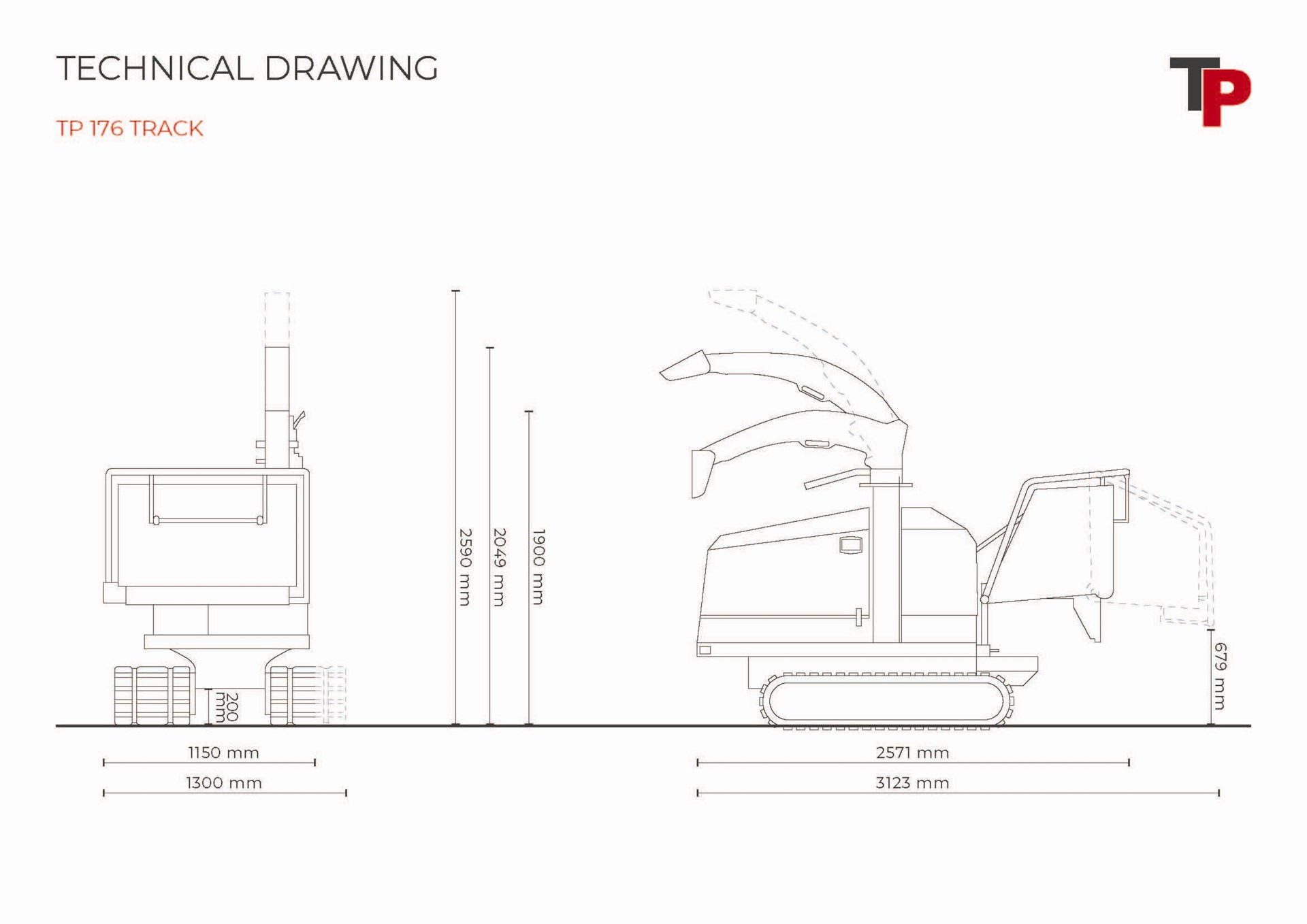

Dimensions

Length (transport/operation): 2571 mm/3123 mm
Width: 1150 - 1300 mm
Height (t/o) TP VARIO SPOUT: 1900 mm/2049-2590 mm
Height (t/o) TP FIXED SPOUT: 2049 mm
Weight: 1150 kg

Remote Control

Remote Control: Standard
